Description:
Shurflo have been manufacturing water pumps since 1968. They are currently the most popular pump manufacturer in the RV market. SHURflo’s REVOLUTION™ fresh water pump design was created with a unique one-piece diaphragm and internal by-pass, assuring long life and top performance in all plumbing systems.

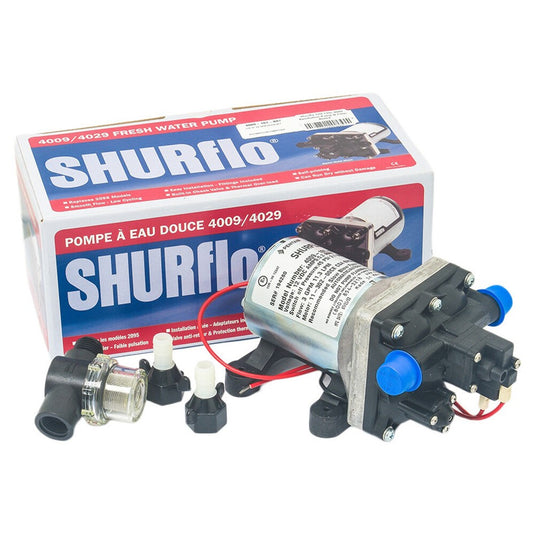

The REVOLUTION™ Pump is built for high flow demand, low noise and no rapid cycling. The 4009 REVOLUTION™ fresh water automatic demand pump is quiet, thermally protected and can run dry without damage. Mounts in any position.
Specifications and features:
3 Gallons per Minute (11.35 Litres)
Self-Priming 45 PSI
Internal Bypass-Low Cycling
Quiet Operation Runs Dry – Thermally Protected
Built-In Check Valve
Voltage 12 VDC
Dimensions 206 x 125 x 110mm
Flow Rate GPM/LPM 3.0 GPM [11.4 LPM] Amps (Max.) 7.5
Shut Off Pressure 45 PSI [3.1 BAR]
CE & C tick compliant
Installation instructions included
An accumulator is NOT required with this pump
Ideal replacement for Series 2088 pumps
Dry Prime up to 1.8m Vertical
