Description:
The Black Jack Trailer Jack Folding Foot 10″ is designed to easily connect to the Black Jack shaft in just a few easy steps. Simply remove existing extension foot supplied by releasing the clip-pin. Insert the supplied collar and ring in position and align the Folding Foot in its place. Finally insert the clip-pin in the holes provided. Makes swapping from one to the other a breeze and improving your hitch height and hitch experience.
Heavy duty but also light weight provides a great travel accessory and can be permanently connected when travelling.
Warning and Caution !!!
Black Jack Folding Foot Installation
- The folding foot must be installed so that it is clear of any obstructions. The folding foot must be able to freely extend and retract to its full extension and full horizontal retraction.
- If the foot encounters an obstruction, for example a chassis rail or brake cables, before it is fully retracted to a horizontal position then there is a risk of serious internal mechanical damage to the Black Jack. The damage is caused by the leverage pressure (up to 3,500kg) the folding foot can add it if encounters an obstruction. This type of damage is NOT covered under warranty as it is a user installation error.
- When installing the folding foot, make sure the Black Jack orientation allows for full clearance of the folding foot. This may mean rotating the orientation of the Black Jack.
- If the folding foot cannot be installed so that it is clear of obstructions, then DO NOT USE IT. Install the silver adjustable foot instead.
- Please note: The new Black Jack Mini is not compatible with the Folding Foot.
In addition to these custom designed features for the Black Jack Folding Foot 10″:
- Made from strong from protective powder coated mild steel, suitable for harsh environments.
- Designed for rapid deployment and retraction saving you time.
- No more bending down when using your trailer jack or jockey wheel.
- Are amazingly light weight and can be permanently mounted or stowed away in compact spaces.
- Are corrosion, oil and chemical resistant.
Specifications:

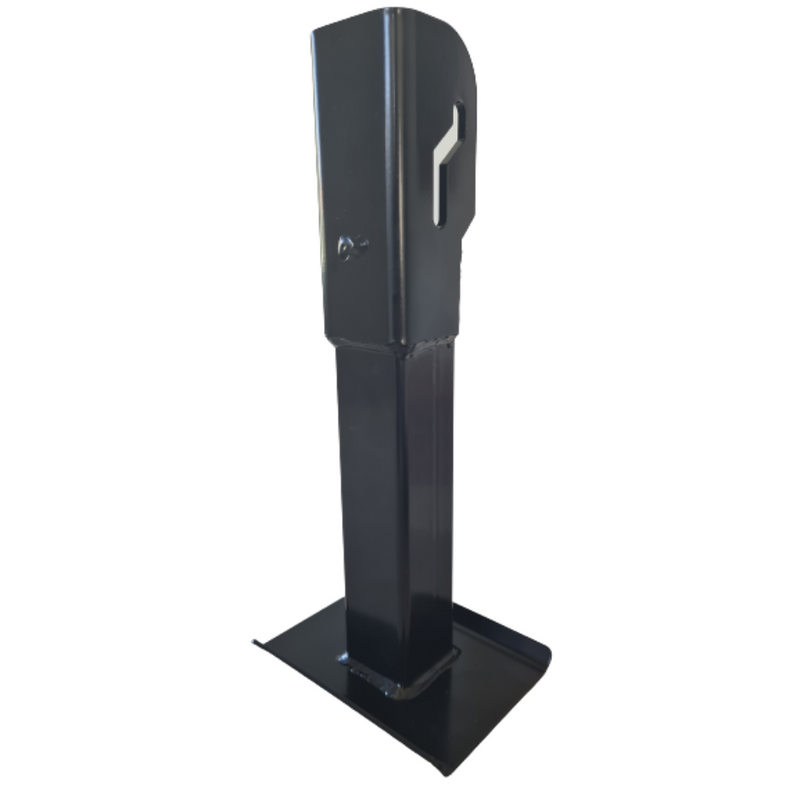

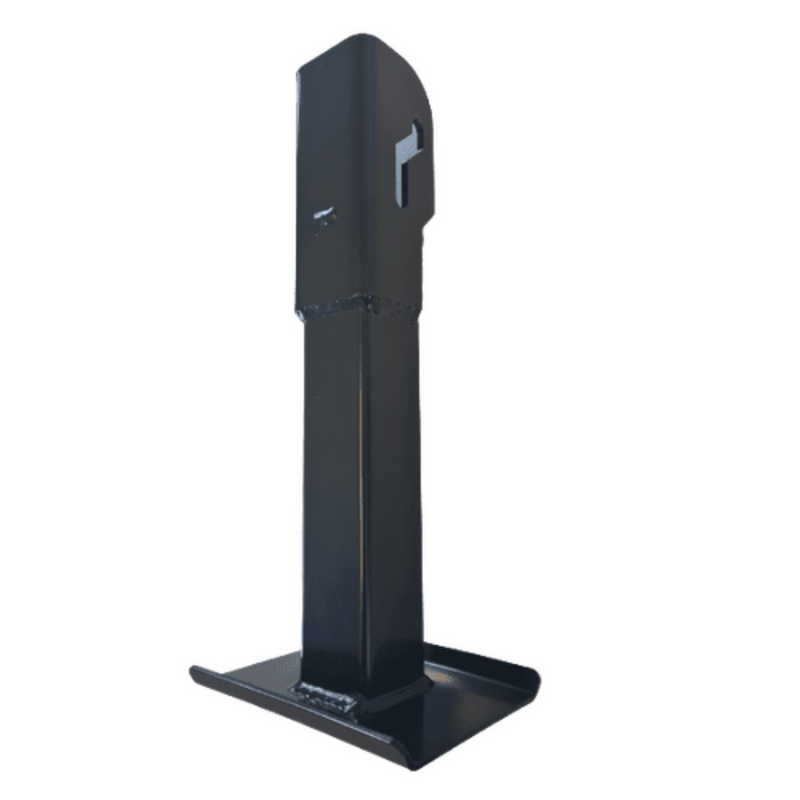

BLACK JACK Trailer Jack Folding Foot 10″ Dimensions
Diameter Foot Plate: 15.2cm x 11.5cm
Overall Height: 35.5cm
Weight: 2.2kg
Maximum Load: 2,000kg
